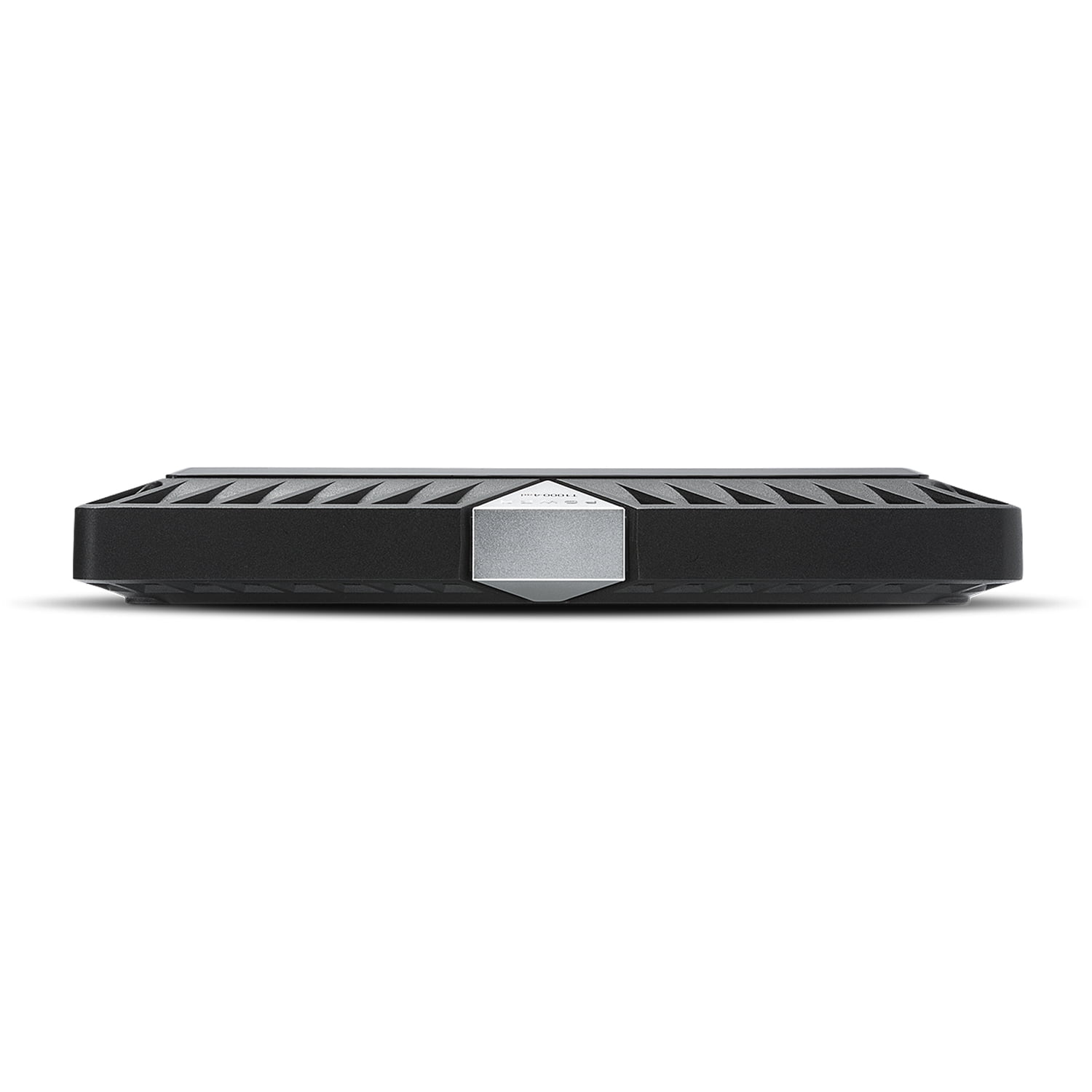

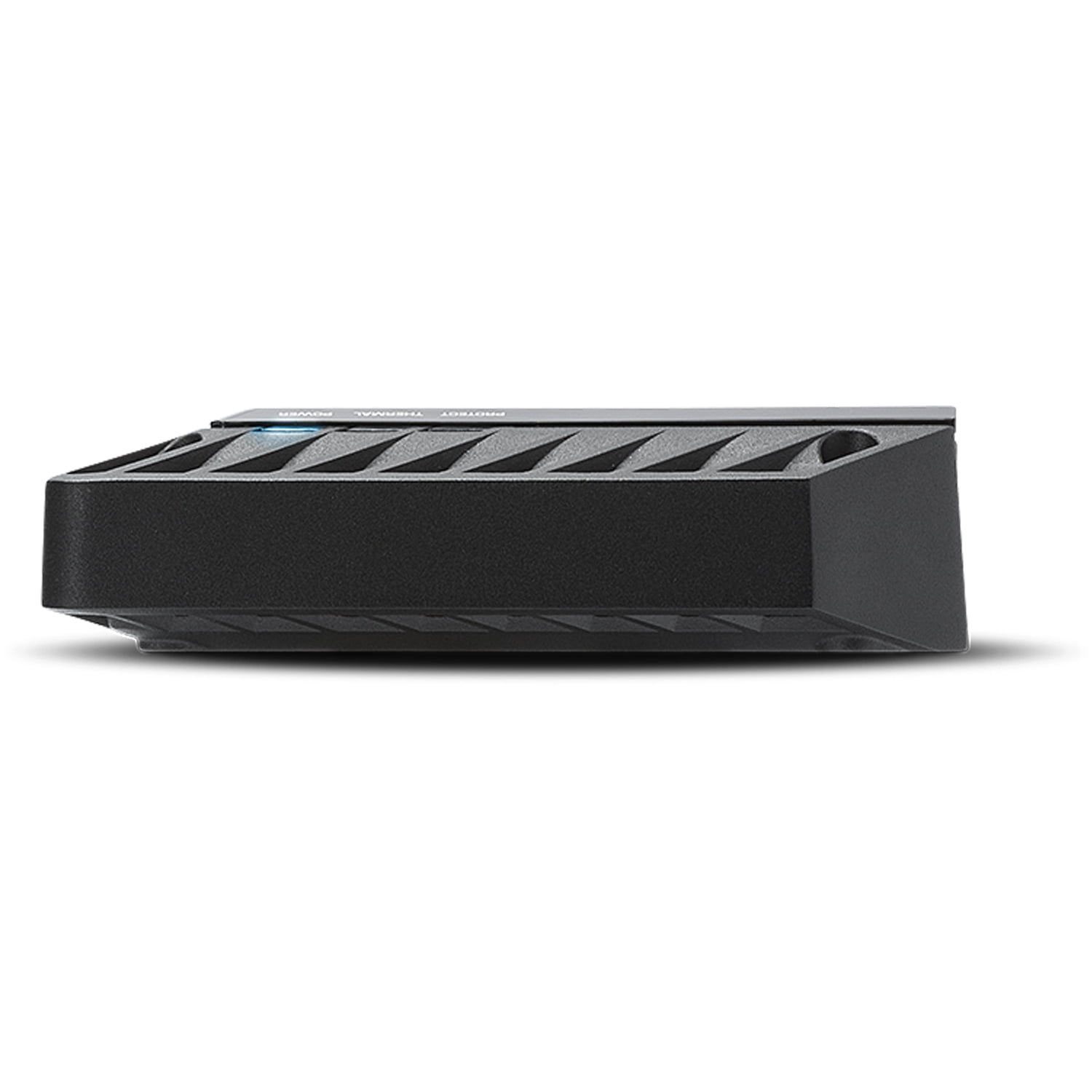

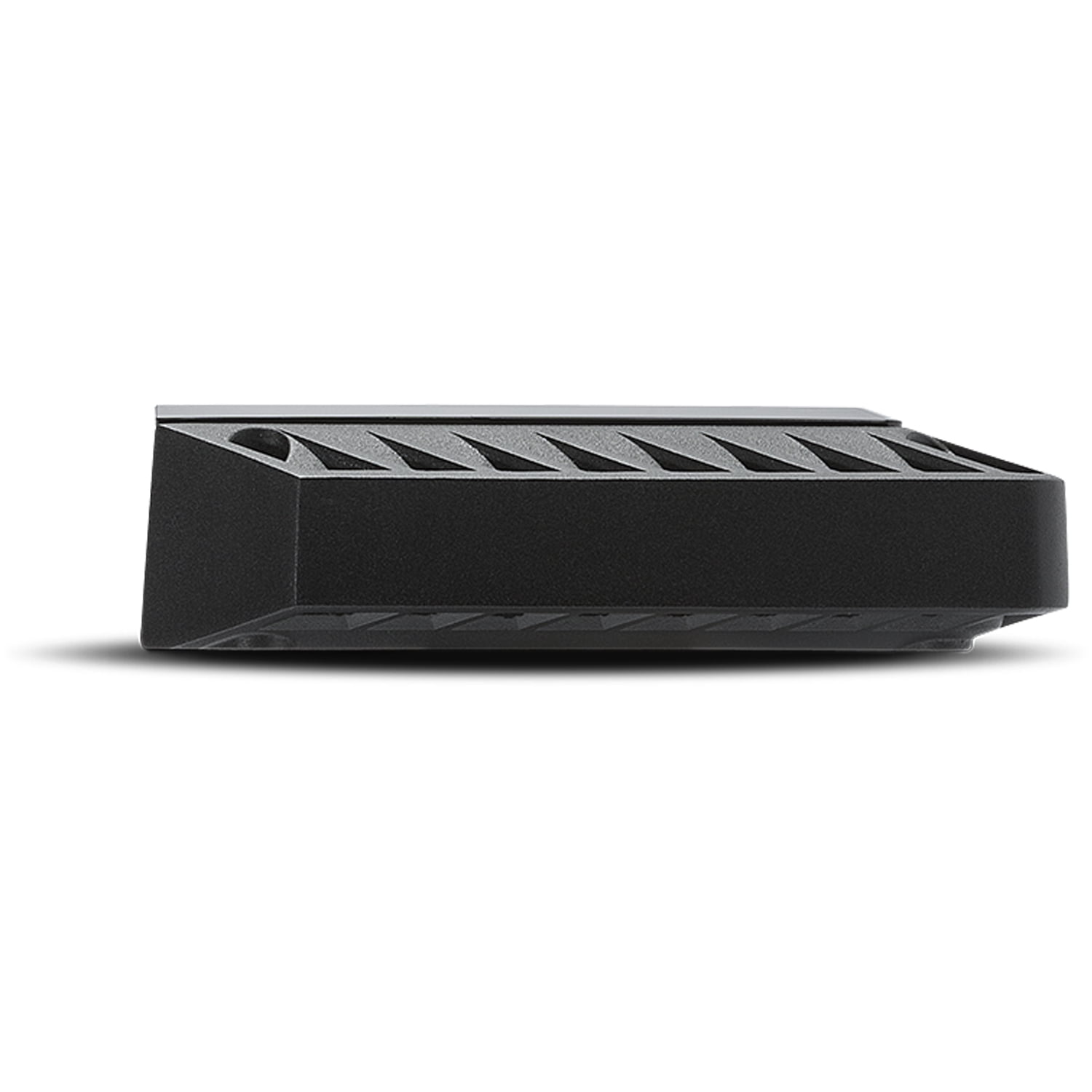

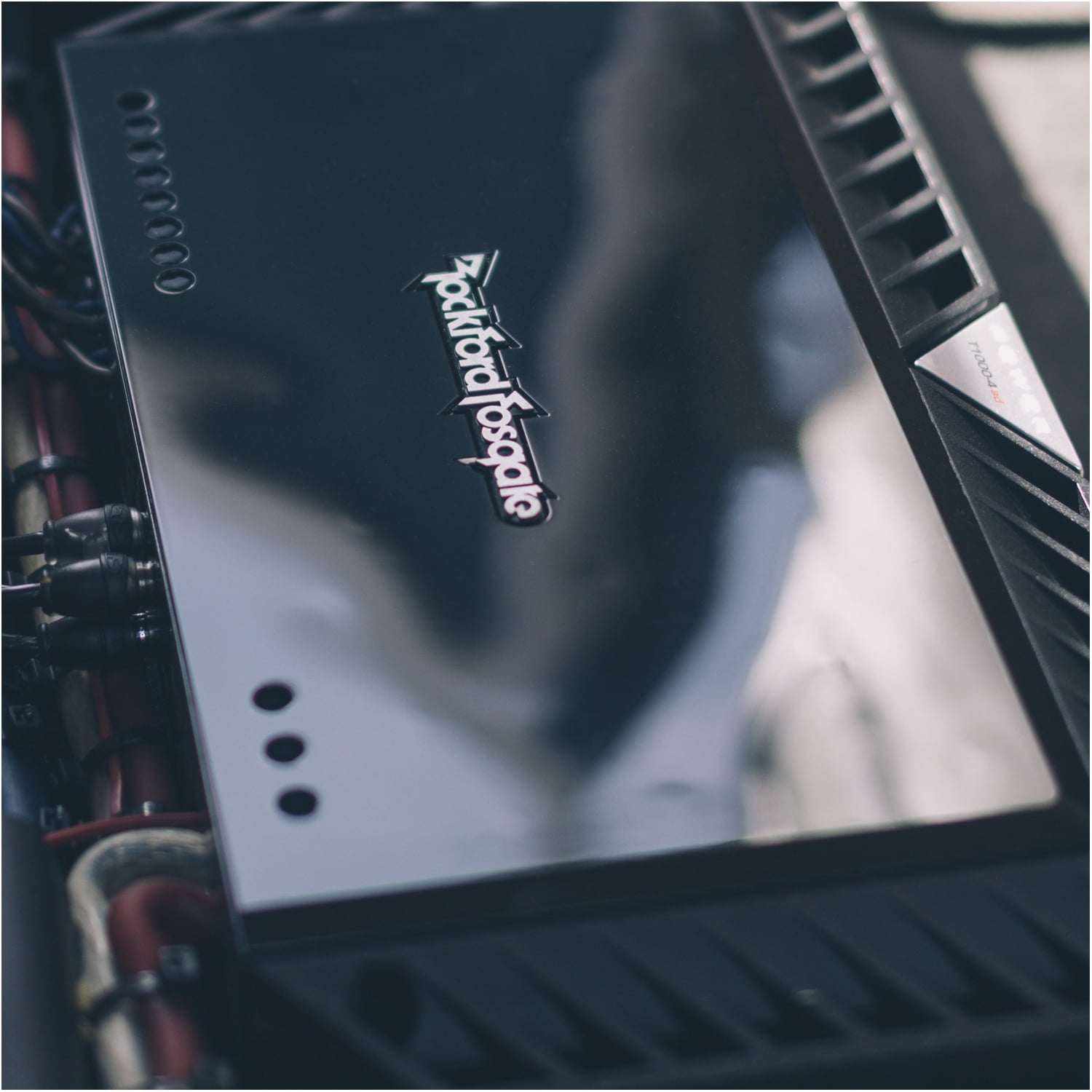

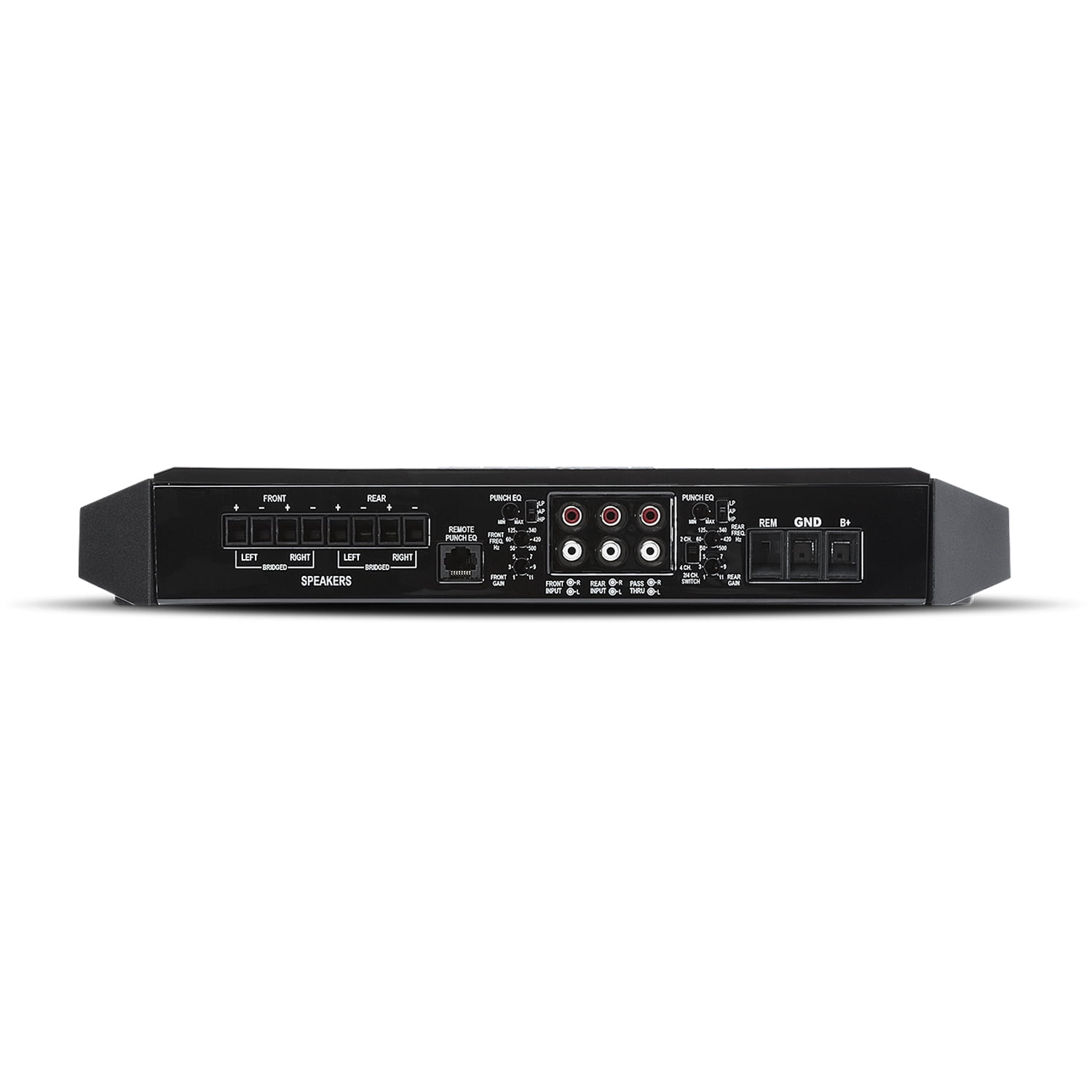

Rockford Fosgate T1000-4ad Power 1,000 Watt Class-ad Full-Range 4-Channel Amplifier

This brand new **Rockford Fosgate T1000-4ad** 1000 Watt 4-Channel Car Audio Amplifier is the perfect amplifier for you, and with 1000 watts divided between 4 channels, you will never run out of bass pumping power. This amp features Class-AD tecnology that allows the amp to produce more power with less current draw from the vehicle; Constant Power provides the ability to instantaneously deliver maximum output power to the speakers without regard to its varying impedance; Differential Inputs that eliminate noise picked up by signal cables; DSM that utilizes 1% tight-tolerances improving efficiency of the circuit; Dynamic Thermal Management (DTM) evenly distributes excess heat across the entire amp heatsink; MEHSA3 which reduces MOSFET temps and lowers distortion; NOMAD is a "real time" analog computer that protects the amp from shorting speaker wires; Punch EQ2 an onboard equalizer with up to +18dB @ 35Hz and/or up to +12dB boost at 12kHz.This T1000-4ad amplifier offers state-of-the-art technology, and also includes a MOSFET power supply, RCA pass-thru, Audiophile grade speaker connections, 4-gauge power/ground terminals, a 24dB/ octave crosser, 2/4 channel switch, and a MOSFET output stage. Experience superior sound quality when you use the Rockford Fosgate T1000-4 1000 Watt 4-Channel Car Audio Amplifier.Read the Owner's Manual [here.][1][1]: http://www.rockfordfosgate.com/rftech/library/2011/3_Amplifiers/1230-56407-02_T800-4ad_T1000-4ad_MAN.pdf

• New **Rockford Fosgate T1000-4ad** 1000 Watt 4-Channel Car Audio Amplifier
• **Total Power:** 1000 Watts RMS
• **RMS Continuous Power Rating:**
• 250 Watts x 4 @ 4-Ohm
• 250 Watts x 4 @ 2-Ohm
• 250 Watts x 4 @ 1-Ohm
• 500 Watts x 2 @ 4-Ohm Bridged
• 500 Watts x 2 @ 2-Ohm Bridged
• **Dynamic Power PVC Power Cube Measurement:**
• Front Channels:
• 290 Watts x 2 @ 4-Ohms 0° Res
• 290 Watts x 2 @ 2-Ohms 0° Res
• 290 Watts x 2 @ 1-Ohm 0° Res
• Rear Channels:
• 290 Watts x 2 @ 4-Ohms 0° Res
• 290 Watts x 2 @ 2-Ohms 0° Res
• 290 Watts x 2 @ 1-Ohm 0° Res
• **Efficiency:**
• 84.1% @ 4-Ohm Full Power
• 81.6% @ 2-Ohm Full Power
• 81.0% @ 1-Ohm Full Power
• **Crossover Controls:**
• Front Channels:
• High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
• Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
• Rear Channels:
• High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
• Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
• **Tone Controls:**
• Front Channels:
• Treble: 0dB to +12dB @ 12kHz
• Bass: 0dB to +18dB @ 45Hz
• Rear Channels:
• Treble: 0dB to +12dB @ 12kHz
• Bass: 0dB to +18dB @ 45Hz
• Function depends upon crossover setting (LP/AP/HP)
• **Signal Input:**
• Front Channels:
• 1 RCA pair
• Rear Channels:
• 1 RCA pair
• Bridgeable: Yes
• Signal Output: 1 RCA Pair
• Power Input Connector: Block
• Power Wire Gauge: 4 AWG
• Speaker Output Connector: Block
• Speaker Wire Gauge: 8 AWG
• 16 AWG
• Heat Sink Type: Cast Aluminum
• Cooling: Convection
• Visual Indicators:
• Power (Blue LED)
• Thermal (Red LED)
• Protect (Yellow LED)
• 2/4 channel switch
• Circuit Topology Class: Class A/D
• MOSFET output stage
• MOSFET power supply
• Audiophile grade speaker connections
• 24dB/octave crossover
• RCA pass-thru
• Bass Boost
• Frequency response: 20Hz to 20kHz +/-1dB
• CEA-2006 Compliant Amplifier
• Weight: 13.8 lbs (shipping weight)
• Condition: BRAND NEW!
• Part Number: **T1000-4ad**
• Warranty: 2 Year VMInnovations Warranty
